Membrane type nitrogen separators
Gas separation membranes for separating nitrogen from air have been available since the mid eighties. The first membranes were spiral wound, but today, hollow fiber membranes are used. This allows the greatest possible surface area for gas separation in the smallest space.
The membrane itself consists of a polymer that is permeable to different degrees for different gases. In principle, almost all gases can pass through the membrane, but at different permeation rates. For the gases involved in CA applications, the following applies: Water vapor permeates fastest, followed by CO2, O2 and finally N2. The ratio between the permeation rates of two gases is known as selectivity. The driving force for the exchange of gases is the partial pressure difference of the gases on either side of the membrane.
This effect is exploited in nitrogen separation, in that oxygen can be extracted from compressed air.

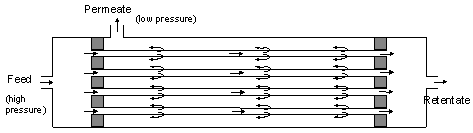

Figure 52: Fundamental structure of a gas separation membrane

Furthermore, higher membrane temperatures increase the degree of permeability, so that today, membranes are generally used at as high a temperature as possible in order to achieve the greatest possible yield from a small membrane. At the same time, the selectivity between oxygen and nitrogen drops as the temperature increases, i.e. the efficiency is reduced in relation to the volume of compressed air used. This effect is not significant with membranes which have a high selectivity to start with. If, however, the selectivity of a membrane is limited, it does not make sense to operate it at high temperatures.

Click on graphic to enlarge

Figure 53: Characteristics of a nitrogen separation membrane
Figure 53 shows the characteristic curves of a gas separation membrane. It shows the purity of the nitrogen produced and the yield (volume of nitrogen generated in relation to the volume of compressed air used) for a control membrane at constant pressure. The conditions were altered on the basis of this curve: The gas exchange surface was doubled (this corresponds to the use of two parallel membranes), the air pressure was increased by a factor of 1, and the permeability of oxygen was doubled (different membrane material).

Today, membrane systems are generally used if residual oxygen content of 1% is adequate. Greater degrees of purity can be generated more cost-effectively with PSA systems. For CA in refrigerated containers, membrane systems are now used almost exclusively, because they are based on a simple principle and can be constructed to be light and compact. They consist of the following key components (see Figure 54):
  • Air compressor with a suction filter
  • Filter and water extractor in the compressed air supply
  • Heating component to heat the compressed air
  • Gas separation membrane
  • Choke point to reduce pressure
These are complemented by a number of safety features such as pressure valves, etc.
Figure 54: Basic principle of a membrane type nitrogen separator
