5.3.7.3   Palletized cargoes, mixed cargo,
example 3

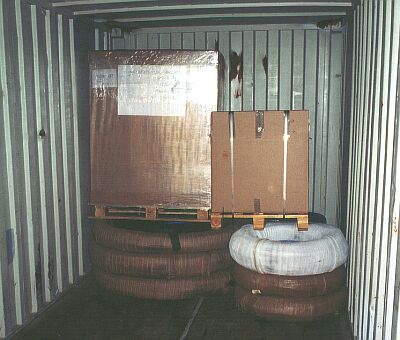

The tube coils could be damaged by the pallet stowed on top of them. In addition, the arrangement of the shipping packages makes further packing difficult.


  Very risky packing of a box container


Interlayer dunnage of boards or beams supported by squared lumber simplifies the stowing of further packages. The stowage gap was left between the two pallets as a result of restowing and has been filled using two plywood sheets for pressure distribution and an airbag.


  Risk reduction using wooden interlayer dunnage and an airbag to fill the stowage gap
